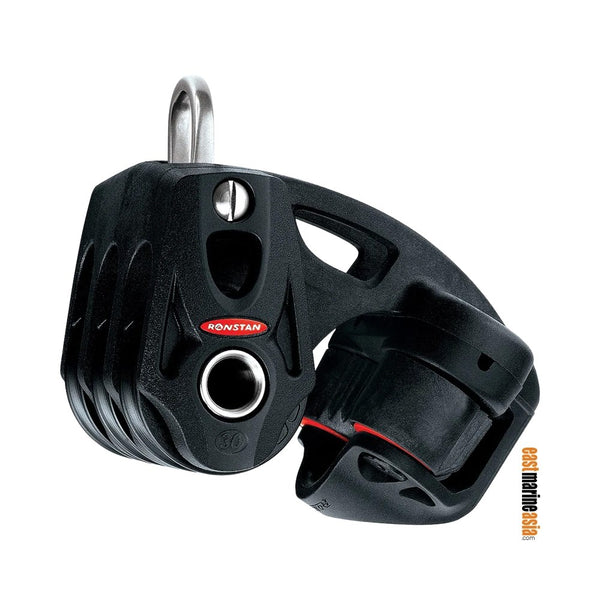

Ronstan Series 30 Ball Bearing Triple Orbit Block - C-Cleat, Fairlead and Non-swivel Shackle Head - RF35322
- High performance cleating
- Lightweight
- Highest working load in its class
- Secure, versatile attachment
- Ultra low profile thru-sheave becket
- Low friction 2-stage ball bearing system provides consistent performance over the full working load range
Applications
- Mainsheet systems and spinnaker sheets on dinghies up to 5 m (16 ft)
- Halyard, vang and backstay applications on boats up to 5 m (16 ft)
- Control line applications on larger yachts
Materials
- Sheave: High compression strength carbon black acetal
- Ball Bearings: High compression strength acetal
- Frame / Cheeks: Toughened, glass fibre reinforced nylon
Specifications
- Sheave Ø: 30 mm
- Max. Rope Ø: 8 mm
- Max. Cable Ø: - mm
- Pin Ø: - mm
- MWL: 550 kg
- BL: 1100 kg
- Weight: 130 g
- Note: Line load through cleat not to exceed 125 kg
