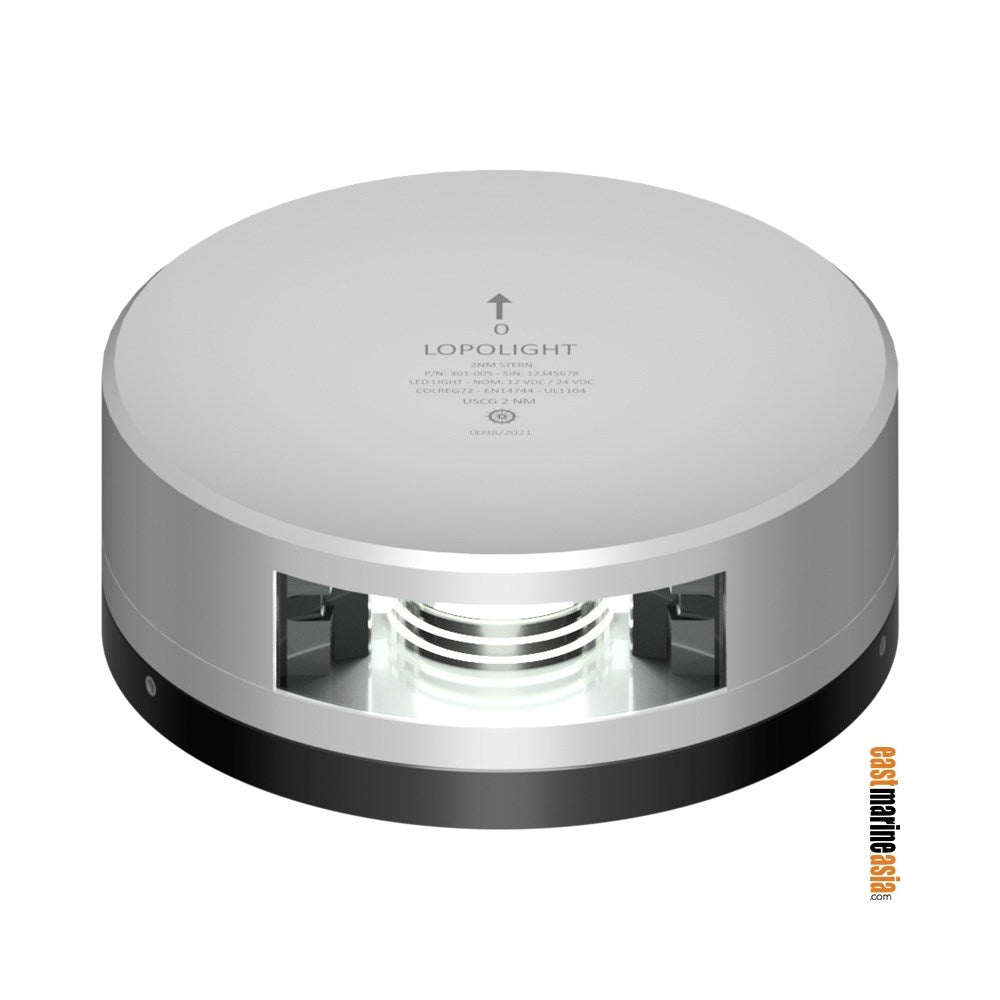

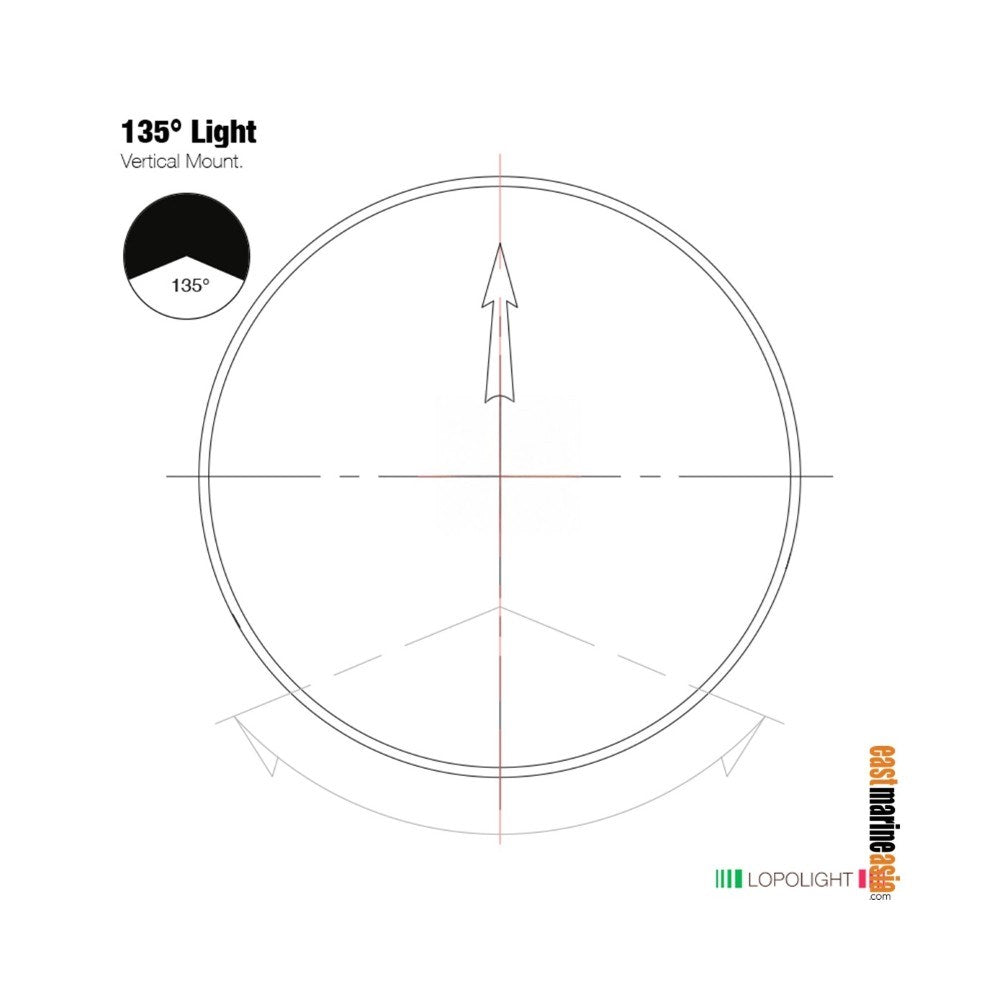

Lopolight 301-005-FB 135° 2 nm LED Navigation Light - Silver, with FB Base
Vessel size: Under 12 m, 12 - 20 m, 20 - 50 m
Light colour: White
Certification: Certified by DNV
Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Mounting: Horizontal
Materials: Silver anodised aluminium 25 µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
Operating voltage: 10 - 32 Vdc
IP rating: IP68
Power draw: 1.3 W
Connection: 2.5 m cable
Current consumption: 110 mA @ 12 Vdc
Min feed wire gauge: 0.5 mm2 (AWG 22)
Size: ⌀ 92.5 x 36 mm
Weight: 0.57 kg
