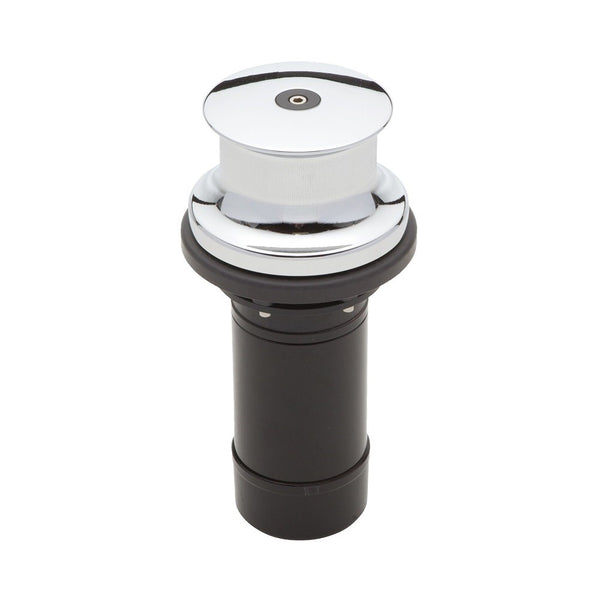

Muir VC800 Inline Vertical Capstan

特价!

To pre-order this product call us +66 (0) 76 239 113 or contact below:


名称:*

电子邮件:*
电话号码:
信息: *
* 必填字段
Looking for wholesale pricing & volume discounts? Become a dealer! »»
产品描述

Please contact us (sales@eastmarineasia.com ) or use the form above for price quote.

*** Worldwide drop-ship directly from factory ***

Please include information like your intended voltage (or hydraulic type) and size of your chain.


Muir VC800 Pot Hauler Inline Vertical Capstan

  • VC800 has 316 Stainless Steel Capstans
  • Capstan features knurled finish for increased grip
  • VC800 has clockwise rotation and has auto action clutch to prevent rollback
  • Unit can be mounted horizontally
  • Self-aligning gearbox / adaptor
  • Stainless steel shaft
  • Stainless steel mounting bolts
  • Shaft seal
  • Installation / Operation booklet
  • Deck switch included
  • 100 A circuit breaker included

Vessel Length

11 m (36 ft)

Power Supply

12 Vdc

Motor

600 W

Max Load

180 kg (396 lb)

Work Load

36 kg (80 lb)

Amps Work Load

48 / 12

Max Line Speed

39 m / min (128 ft / min)

Rope Size

Up to 22 mm (7/8”)
